Gas Purification Requirements in Gas Chromatography

Gas chromatography uses mainly three types of gases:

• Carrier gases: nitrogen, hydrogen or helium
• Fuel: hydrogen
• Oxidant: zero air

Gases used for gas chromatography analysis should conform to specified purity requirements. Most laboratories use gas cylinders or gas generators from reputed sources. However, it is advisable to further purify the gases before use on gas chromatography. Before talking about purification let us discuss briefly purity and other general requirements of gases used for gas chromatographic analysis.

Carrier gas

Carrier gas should contain less than 1 ppm of oxygen, moisture or other contaminants. Helium and nitrogen are commonly used. Hydrogen is an ideal choice but is very rarely used due to its high flammability hazards. Stainless steel or copper tubing free from grease or organic matter is used. Carrier gas should be filtered using moisture trap, hydrocarbon trap and oxygen filter.

Hydrogen

Hydrogen is commercially used as a fuel to support combustion in Flame Ionization detection. Purity of hydrogen should be at least 99.995% and it should be passed through a moisture filter

Zero air

Zero air plays the role of oxidant to support combustion. It should contain less than 0.1 ppm of total hydrocarbons. As for carrier gas stainless steel or copper tubing can be used. It needs to be free from moisture so moisture trap should be used in its flow path

 Tubing requirements

Copper and stainless steel tubes are generally used. Plastic, Tygon or PVC tubing should be avoided as water and air can permeate through such materials. Plastics also give off organic impurities which can result in baseline instabilities and extraneous peaks. Length of tubing should be kept to minimum to avoid excessive pressure drop and number of bends in lines should also be kept to the minimum.

Filters and traps

Traps help remove moisture, oxygen, hydrocarbons and other impurities from gas lines. Metal or glass traps (self indicating) are commonly used. Plastic traps like plastic tubes are not recommended. Traps are available with standard 1/4”or 1/8” compression fittings.

Moisture traps are generally self indicating type and packed with molecular sieves or silica gel which will reduce both oxygen and moisture to less than 15 ppb.

Hydrocarbon traps are useful for removing hydrocarbon impurities by absorption on activated charcoal. A 20 μm frit removes particulate impurities. Indicating hydrocarbon traps are used for removal of oil contamination from oil lubricated air compressors for FID operation.

Oxygen traps remove oxygen down to 0.1 ppm.Oxygen contamination can produce excessive column bleed at high temperatures. Care needs to be exercised in handling oxygen traps as these are packed with highly reactive material whose exposure should be avoided.

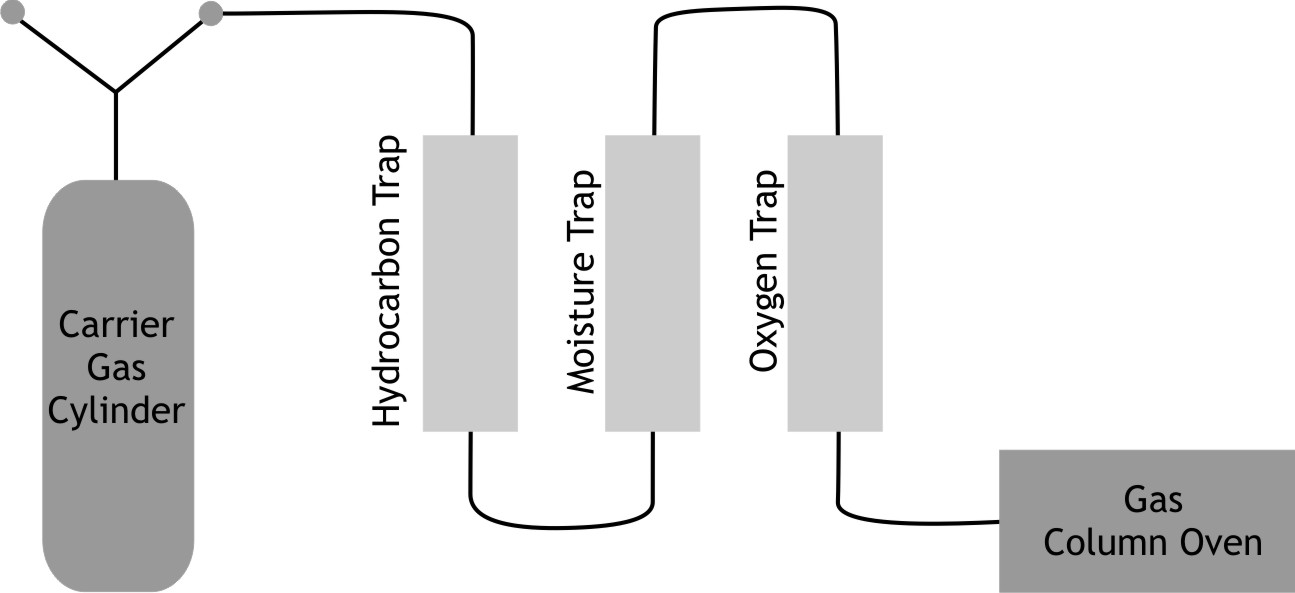

Installation sequence of traps in carrier gas stream

A proper sequence needs to be followed for installation of traps in carrier gas stream.

First in line from gas tank is hydrocarbon trap. This prevents contamination of molecular sieve in moisture trap by hydrocarbons. Second is moisture trap and third is oxygen trap which is as close to gas chromatography oven as possible. This will help eliminate oxygen that may enter from leaking fittings downstream.

It is advisable to mount traps vertically to prevent channeling.

Gas purification of commercially available gas supplies is necessary to generate stable baselines without noise or ghost peaks in gas chromatographic analysis.
